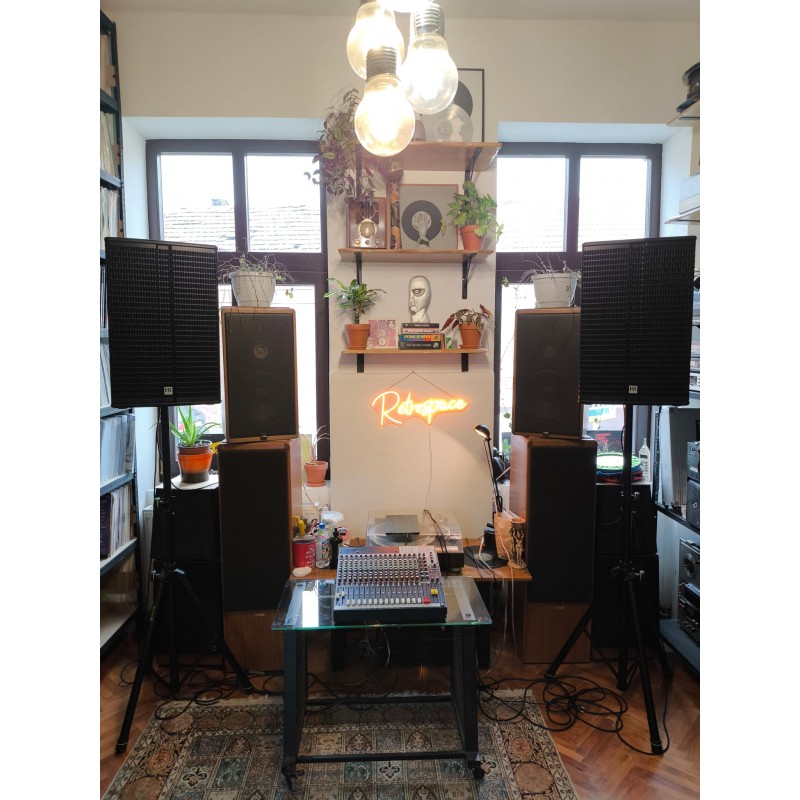

Rental Professional Audio Setup for Events (Speakers + Mixer)

1. Set (2 pcs) HK Audio Linear 3 115 FA – active full-range loudspeaker, with a continuous power of 600W / 1200W max and DSP with 4 EQ presets.

Maximum peak SPL: 135 dB (@ 10% THD)

frequency response:

58 Hz – 16 kHz (+/- 3 dB)

49 Hz – 18 kHz (-10 dB)

amplification: 1200W max, Class D, bi-amplified

active protection circuits: under-voltage, thermal, short-circuit, over-current, subsonic filter, look-ahead temperature control, peak, RMS and multiband limiter

low/mid speaker: 1 x 15"

high-frequency driver: 1"

coverage: 90° x 55° CD horn

active crossover frequency: 2.3 kHz FIR X-Over with 72 dB/oct.

input connections: 2 x XLR combo inputs, 1 x stereo RCA

output connections: 2 x balanced XLR Thru, 1 x Mix

sensitivity switch: mic / line on input A

DSP presets with 2 EQ switches: Bass Boost/Flat & Flat/Contour

stand mount: DuoTilt 3/7, standard 35 mm

suspension points: 4 x M8

16 mm MDF cabinet

dimensions: 44 x 69 x 44.5 cm

weight: 27.9 kg

made in Germany

2. Soundcraft FX16 II Mixer

In 1997, Soundcraft released the renowned Spirit FX16, a model that became popular due to its effects and direct outputs. Ten years ago, the manufacturer created the FX16 II with Lexicon digital effects. The FX16 II uses the same AudioDNA processor found in Lexicon modules (for example, the MX400 model).

26 total inputs

16 mono microphone inputs

4 stereo returns

4-bus architecture; subgroups routable to mix

24-bit Lexicon effects processor

32 effect presets

Tap Tempo function

3 buttons for adjusting effect parameters

ability to save effect presets

direct outputs for multitrack recording, each individually selectable pre/post-fader

insert points on each mono channel

insert on stereo mix output

classic 3-band EQ with parametric mids

100 Hz high-pass filter with 18 dB/octave attenuation

+48V phantom power switchable in 2 groups: 1–8 and 9–16

channel mute

10-segment tricolor LED level meters

two subgroup outputs

separate mono output

designed and controlled in the UK by Harman Corporation

3. Set (2 pcs) Gravity SS-5211 Black Set, set of 2 professional speaker stands and padded transport bag (15 mm padding).

aluminum tubing

adjustable height: 106 – 192 cm

aluminum joints

35 mm support tube

maximum load: 50 kg

includes a set of interchangeable black rings (5 x 30 mm)

4. Cordial professional audio cables
